General Hotbox Settings



The Hotbox Settings Tab displays the global Settings of the currently selected Hotbox such as


    • Shortcut
    • Hotbox Type (Rowbased Hotbox, Radial or Dial)
    • Button Sizes, Shapes and Colors
    • Positioning of items
    • Backdrops
    • etc.


The available detail options change depending on the choice of Hotbox Type however the below options are global to all Types.



Presets



The Preset Section allows you to store and recall Hotbox Settings.

All available Settings are saved

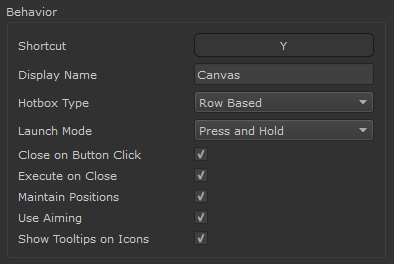

Behavior



  • Shortcut

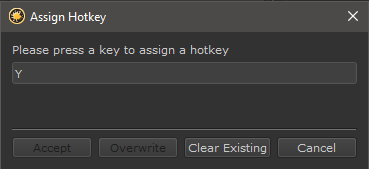

Set the Shortcut for the currently selected Hotbox

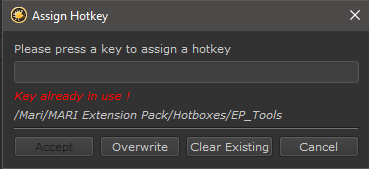

If a conflict is detected you have the option to force-ably overwrite the assignment

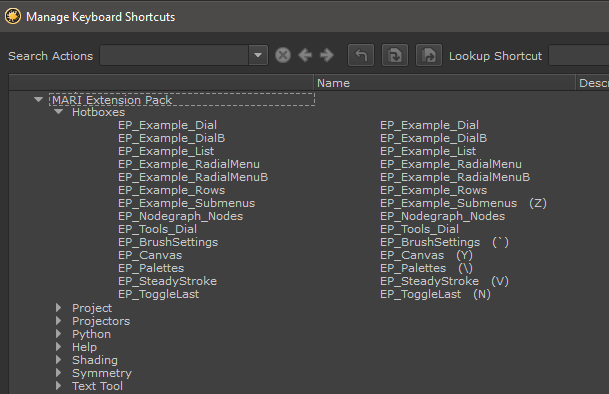

Hotbox Hotkeys can also be defined via the Mari Shortcut Editor available in the Main Window's Edit Menu.




  • Display Name

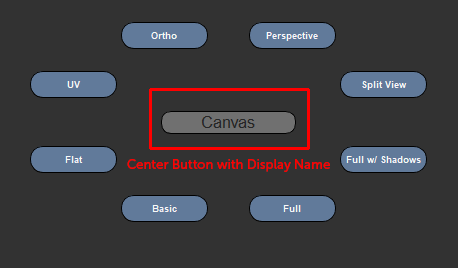

The Display Name is the text shown in the center of a Hotbox if the Center Button is visible




  • Hotbox Type


The Hotbox Type determines the basic shape, distribution and available options of a Hotbox


    • Row Based


Two separate examples of Row Based Hotboxes. The first one has its Center Button hidden.



    • Radial (maximum 8 Buttons)

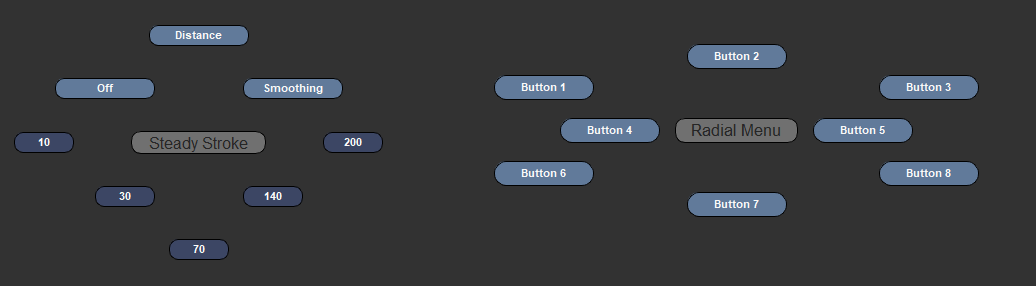

Two separate examples of Radial Hotboxes. Radial Hotboxes can have a maximum of 8 Buttons.

The second one uses a Radial Indent on the Center Buttons.



    • Dial

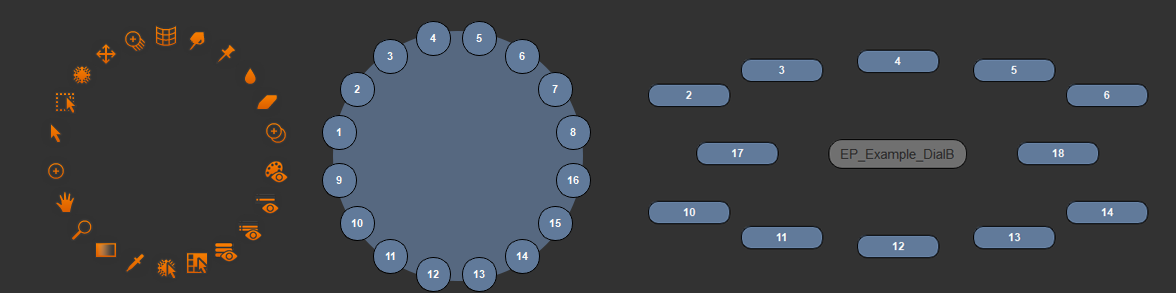

Three separate examples of Dial Hotboxes. The first two have their Center Buttons hidden

The second one has a backdrop, the third one has a squash factor and custom button positioning.



  • Launch Mode


The Launch Mode determines how the Hotbox reacts to being launched by a Shortcut


    • Single Tap


After having been launched via a Hotkey, the Hotbox will stay open even if the Hotkey is released

It will close once


      • a button has been clicked (if Close on Button Click is active)
      • the right mouse button is clicked
      • the hotkey or any other key is pressed


    • Press and Hold


After having been launched via a Hotkey, the Hotbox will stay open as long as the Hotkey is pressed down



  • Close on Button click


When on, a click on a button automatically closes the Hotbox.

When off, the Hotbox will say open until


      • the right mouse button is clicked
      • In Press and Hold Launch Mode: The Hotkey is released
      • In Single Tap Launch Mode: A key is pressed



The advantage of this mode is that it allows execution of multiple actions within a hotbox without the need to reopen the hotbox every time




  • Execute on Close


When on, any button that is marked active is automatically executed as soon as the Hotbox closes even if the user didn't click a mouse button

This works especially well with the Use Aiming setting to rapidly execute a button without being very precise in clicking on the button




  • Maintain Positions


When on, adding a new button will not affect the position of existing buttons to aid with Muscle Memory



Maintain Positions is only available in Row Based and Radial Mode




  • Use Aiming


Aiming draws a virtual line from the center of the Hotbox through your cursor. Any button closest to the Cursor is marked active.

This works especially well with the Execute on close setting to rapidly execute a button without being very precise in clicking on the button



Currently the Aiming Line terminates at the Bounding Box of the Marking Menu.

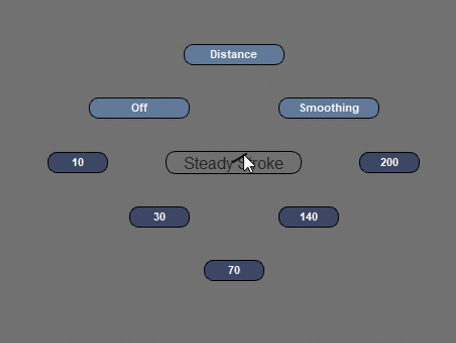

Example of Aiming. Buttons become active without being directly

touched by the cursor



  • Show Tooltips on Icons


If Buttons are only displayed as icons and this setting is turned on, a Tooltip appears with the Button Label/Name when the Mouse hovers over the Icon.




In densely populated Marking Menus with many options, having this setting on can lead to 'Tooltip Spamming' on some Linux Operating Systems, where multiple tooltips are visible at the same time when the user moves the mouse very fast
