Hotbox Type : Row Based

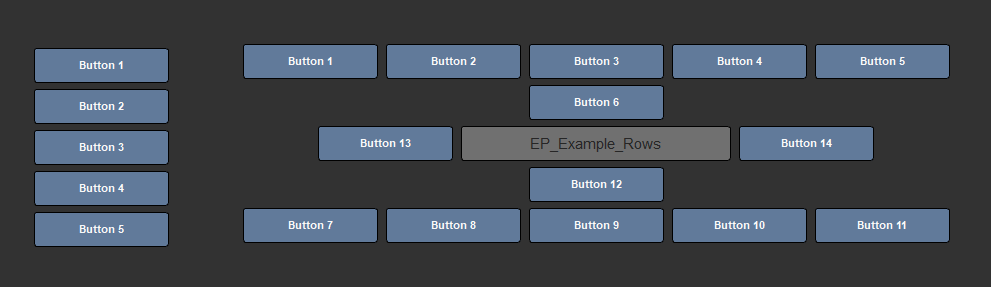

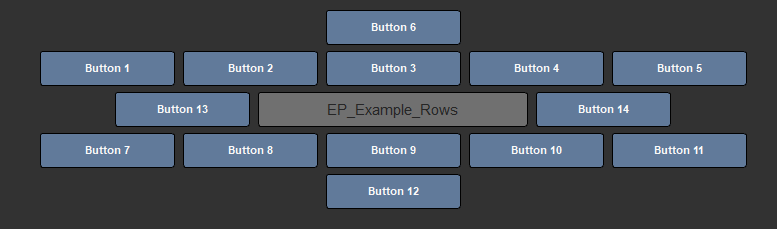

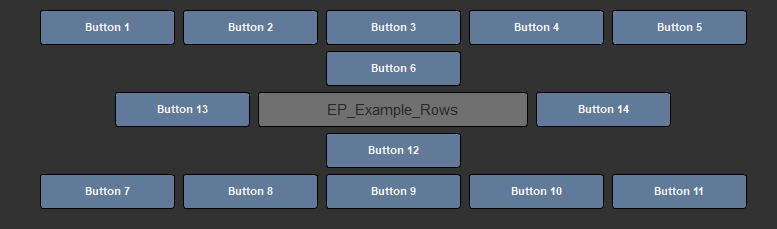

Two separate examples of Row Based Hotboxes. The first one has its Center Button hidden.


Row based Hotboxes come with a set of specific options on top of the general behavior and preset options


Position


The Position Section affects the automatic distribution of buttons

Individual Button positions can be changed in the Button Settings

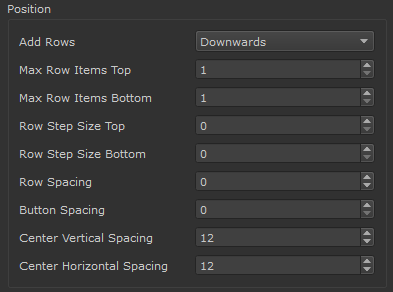

Available Position Settings for a Row Based Hotbox




  • Add Rows


The Add Rows Setting (Upwards or Downwards) determines where a new row is added once a row reaches the maximum amount of buttons it can hold.


    • Downwards


Once a row reaches its maximum capacity a new row is added closest to the hotbox center



    • Upwards


Once a row reaches its maximum capacity a new row is added furthest away from the hotbox center





  • Max Row Items Top

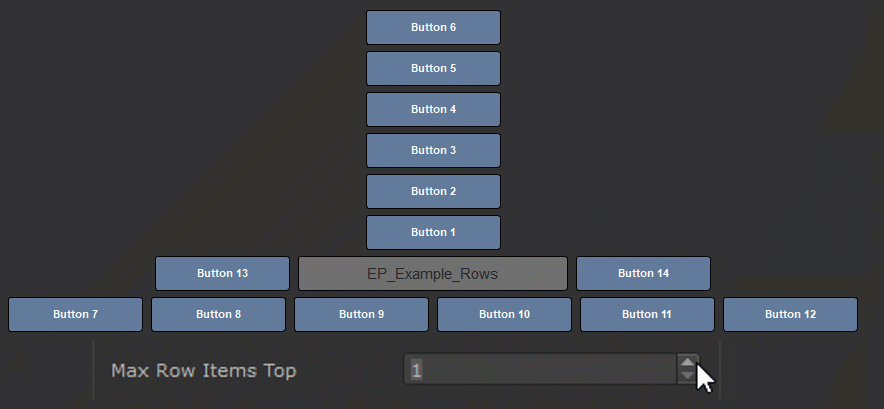

Determines the maximum number of buttons the Top Section can hold before a new row is added

The amount of items per row will vary from the entered value if Row Step Size Top is not 0





  • Max Row Items Bottom


Same as Max Row Items Top only for the Bottom Section, it determines the maximum number of buttons the section can hold before a new row is added

The amount of items per row will vary from the entered value if Row Step Size Bottom is not 0




  • Row Step Size Top


The Row Step Size Top is a modifier for the Max Row Items Top Setting.

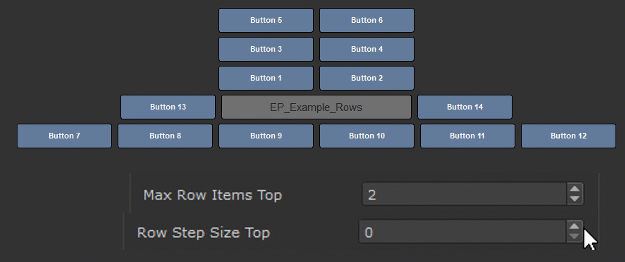

It adds a value per Row to the Max Row Items Top, allowing for the creation of triangular button distribution





  • Row Step Size Bottom


The Row Step Size Bottom is a modifier for the Max Row Items Bottom Setting.

It adds a value to the Max Row Items Bottom, allowing for the creation of triangular button distribution




  • Row Spacing


Row Spacing determines the vertical space between rows in the top and bottom section

Row spacing does not affect space between center and first row. Use Center Vertical Spacing Setting for that

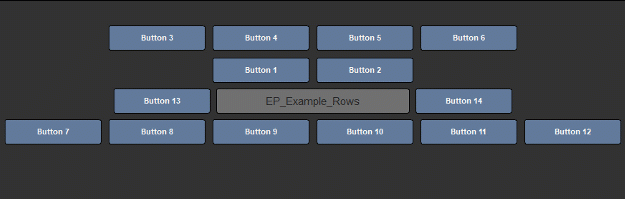

Example of increasing the row spacing



  • Button Spacing


Button Spacing determines the horizontal space between buttons in the top and bottom section

Button spacing does not affect space between center buttons. Use Center Horizontal Spacing Setting for that

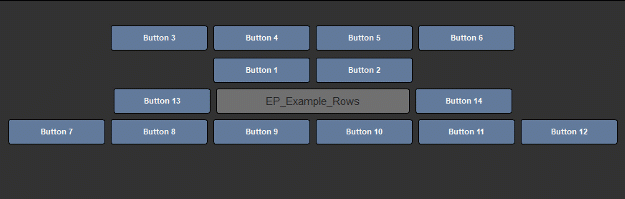

Example of increasing the button spacing



  • Center Vertical Spacing


Center Vertical Spacing determines the space between the center and top section and the center and bottom section

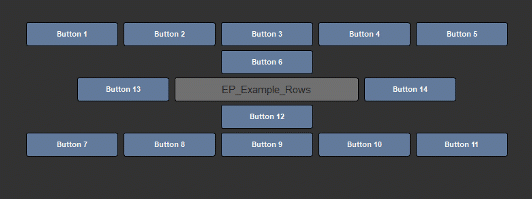

Example of increasing the Center Vertical Spacing



  • Center Horizontal Spacing


Center Horizontal Spacing determines the space between the hotbox center and buttons in the center section to the left and right of the hotbox center

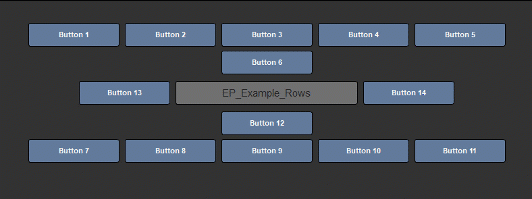

Example of increasing the Center Horizontal Spacing




Style


The Style Section affects the general look of the buttons.

Styles can be overwritten per Button in the Button Settings

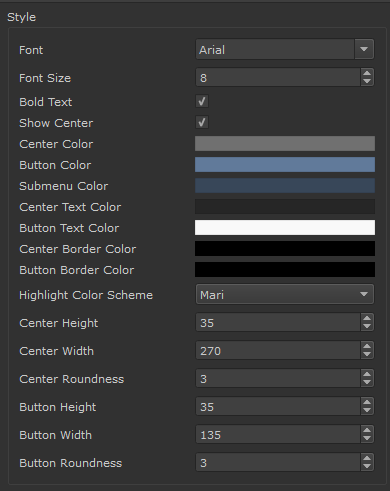

Available Style Settings


  • Font


Determines the font used for buttons



  • Font Size


Determines the font size used for buttons



  • Bold Text


Sets the Font used for Buttons to use bold lettering

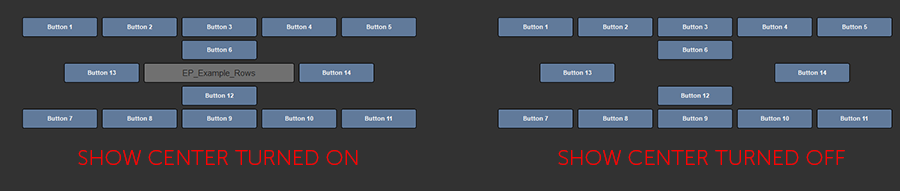

  • Show Center


Determines the visibility of the Center Identifier Button of a Hotbox




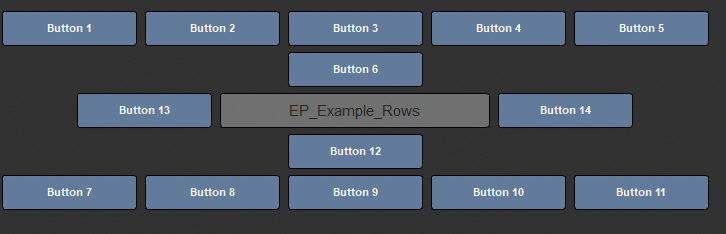

  • Center Color


Determines the background color of the Center Identifier Button of a Hotbox




  • Button Color


Determines the background color of buttons and slider color for sliders

This setting can be overridden per button in the Button Settings




  • Submenu Color

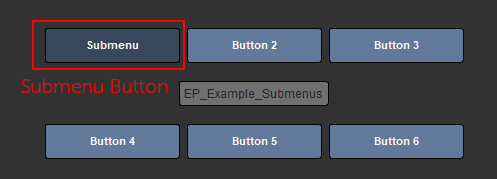

Determines the background color of buttons that open a submenu




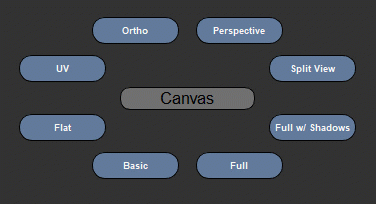

  • Center Text Color


Determines the Font Color of the Center Button





  • Button Text Color


Determines the Font Color of the Center Button

This setting can be overridden per button in the Button Settings




  • Center Border Color


Determines the Color of the Center Button Border




  • Button Border Color


Determines the Color of the Button Border

This setting can be overridden per button in the Button Settings

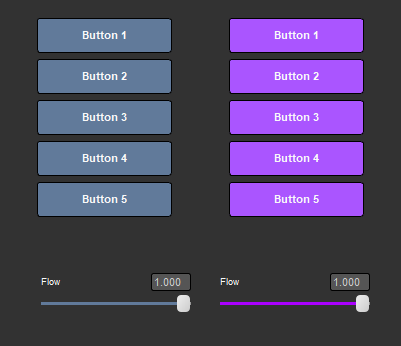

  • Highlight Color Scheme

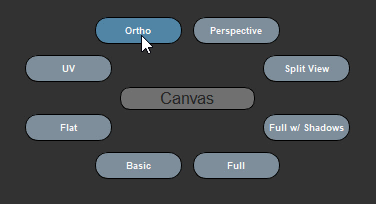

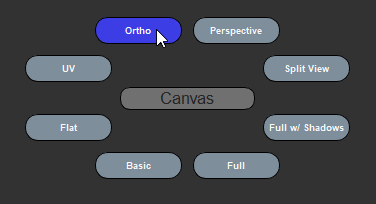

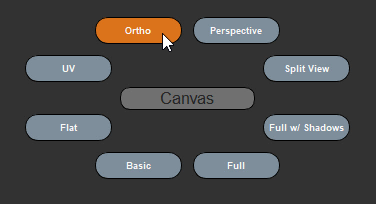

Determines the Mouse-Over Highlight Color of a Button



    • MARI HIGHLIGHT COLOR SCHEME



    • MAYA HIGHLIGHT COLOR SCHEME



    • CUSTOM HIGHLIGHT COLOR SCHEME




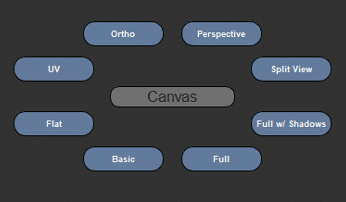

  • Center Height


Determines the Height of the center button

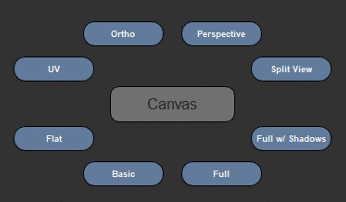

  • Center Width


Determines the width of the center button

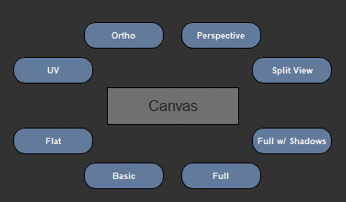

  • Center Roundness


Determines the Corner Radius of the Center Button

The maximum corner radius is determined by the Center Width and Height




  • Button Height


Determines the Height of buttons

This setting can be overridden per button in the Button Settings



  • Button Width


Determines the width of buttons

This setting can be overridden per button in the Button Settings




  • Button Roundness


Determines the Corner Radius of Buttons

The maximum corner radius is determined by the Button Width and Height



This setting can be overridden per button in the Button Settings






Backdrop


The Backdrop allows you to define a background plane for your Menu to improve readability and visibility

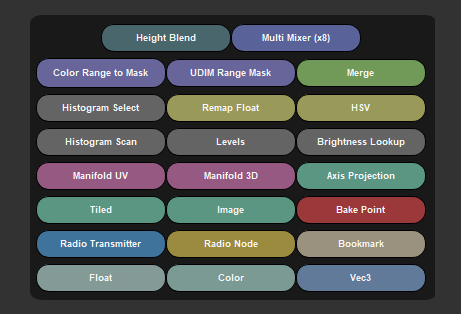

Example of a number of Buttons placed inside a black backdrop

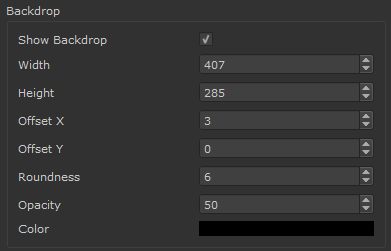

Available Backdrop Settings



  • Show Backdrop


Determines if a Backdrop is drawn


  • Width


Sets the horizontal size of the Backdrop


  • Height


Sets the vertical size of the Backdrop



  • Offset X / Y


Positions the Backdrop



  • Roundness


Determines the Corner Radius of the Backdrop

The maximum corner radius is determined by the Backdrop Width and Height



  • Opacity


Determines the Opacity of the Backdrop


  • Color


Determines the Color of the Backdrop
