PolySurface Curvature by Jens Kafitz








The Polysurface Curvature Node will detect your models curvature and output a mask

Optionally you can feed in a normal map via the Nodegraph to fine tune the result.




Tesselation


Due to MARI & OpenGL limitations Polysurface Curvature does not average the values between

individual faces.This can result in tesselated looking masks.

It is recommended to flatten the node and apply a Gaussian Blur to filter the mask.





Node Overview

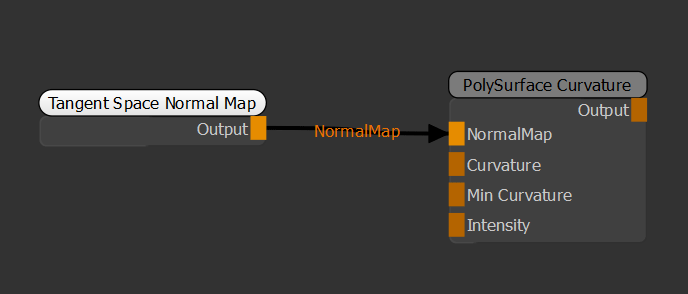

Node Ports


Allows you to attach a tangent space normal map that should be used during the calculation.

This can be useful if you have a lowres mesh with baked normal maps from which you want to pick up curvature information


You can use the Mix Normal Map Slider to determine the strength of the Normal Map during the calculation.


Overwrite the Curvature Slider of the Node with a Node Connection


Overwrite the Min Curvature Variation Slider of the Node with a Node Connection


Overwrite the Intensity Slider of the Node with a Node Connection


Node Properties

Main


Determines the threshold on the curvature. Curvature is evaluated as absolute values meaning there is no difference

between concave and convex curvature being made.


Determines the minimum normal difference between two vertex points need to have in order for the curvature to be

calculated


A multiplier on mask.


Inverts the result of the mask - black becomes white and white versa.


Normal Map (Nodegraph Only)


By utlizing the Nodegraph you can add an additional Normal Map into the calculation of the curvature.

To use this, attached a Normal Map Layer or Channel to the 'Normal Map' Connection in the Nodegraph.



Determines the interpolation value between the objects normals and your normal map.


Extra Attributes


Hard Edged Mode will clip any greyscale values giving you a 2-value mask - pure black & pure white.



Attenuate by Ambient Occlusion will multiply your Curvature and Intensity Sliders by Mari's Ambient Occlusion.

You will most likely have to adjust the Intensity to compensate.


Generate Ambient Occlusion


'Attenuate by Ambient Occlusion' relies on Maris pre-generated occlusion to work.

Generate Object Occlusion via the OBJECTS Menu first.
