Weave 2D

• Where to find it:

• Add Procedural Layer / Procedural / Custom / Pattern /

• NodeGraph / Right Mouse Click / Add Nodes / Procedural / Custom / Pattern /

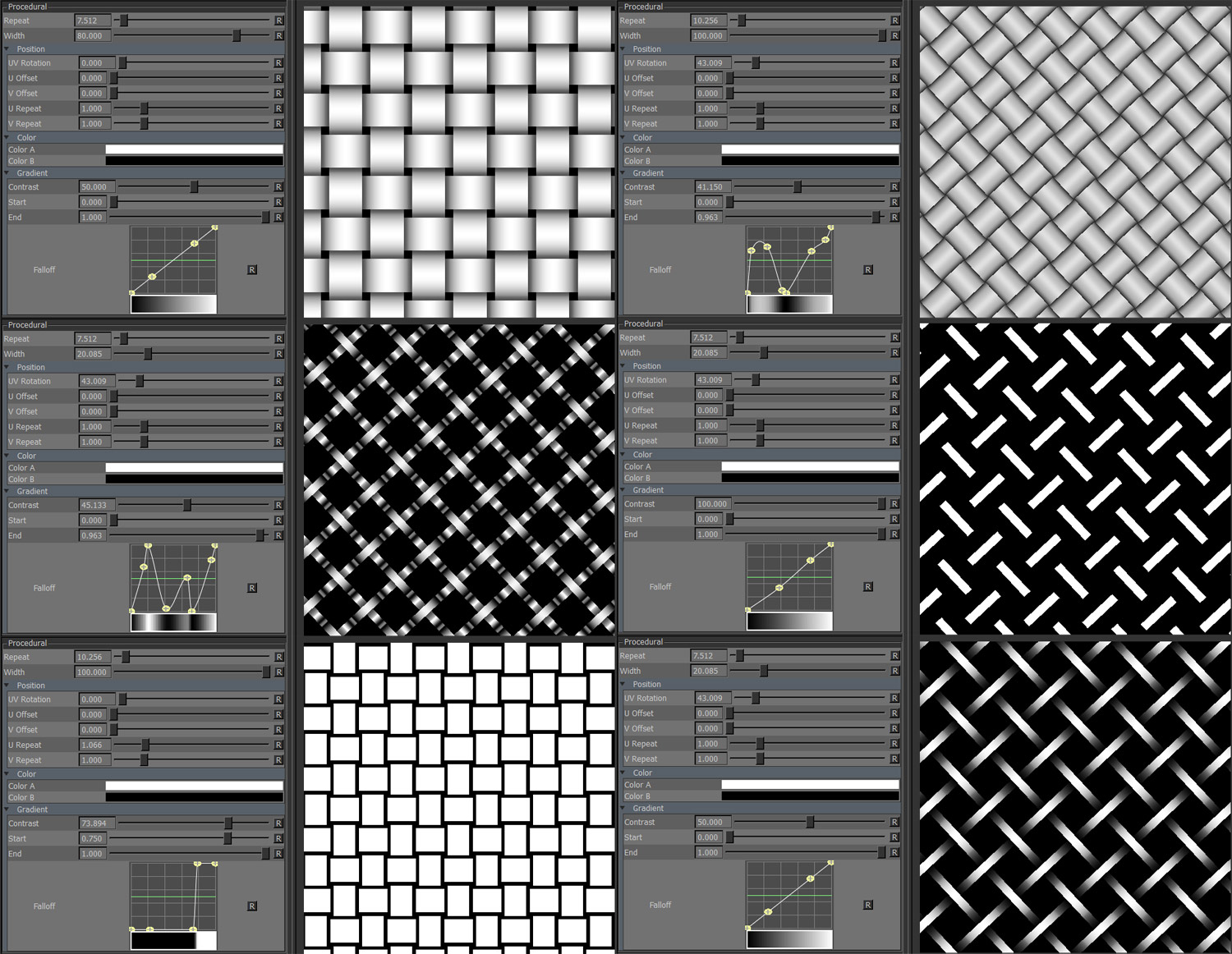

• Samples

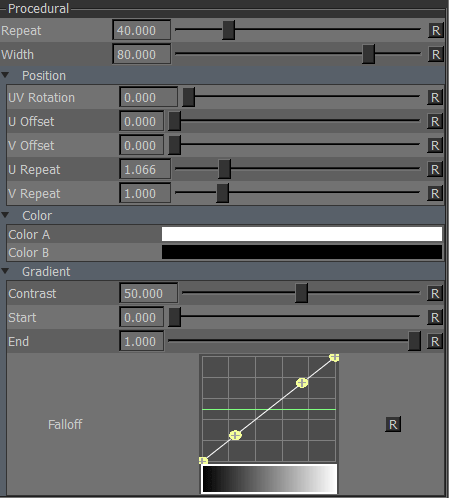

• Options
• Main
• Position
• Color
• Gradient

Weave 2D is similar to Maya's 'Weave' texture, creating a fabric pattern.

• Repeat

The number of shapes to draw horizontally and vertically.

• Width

The width of each shape

• UV Rotation

Rotation in degrees. Pivot is the center of each UV Tile / UDIM.

• U Offset

Translates shapes horizontally in UV Space.

• V Offset

Translates shapes vertically in UV Space.

• U Repeat

Multiplier against 'Repeat' for the number of shapes drawn horizontally in UV Space.

• V Repeat

Multiplier against 'Repeat' for the number of shapes drawn vertically in UV Space.

• Color A

Color of fabric shape

• Color B

Color of gaps between shapes.

• Contrast

Contrast result with a midpoint of 0.5.

• Start

The Value range up to which Color A is drawn.

• End

The Value representing the full Color B.

• Falloff

Remap Curve against the final result.
