SuperEllipse 2D

• Where to find it:

• Add Procedural Layer / Procedural / Custom / Pattern /

• NodeGraph / Right Mouse Click / Add Nodes / Procedural / Custom / Pattern /

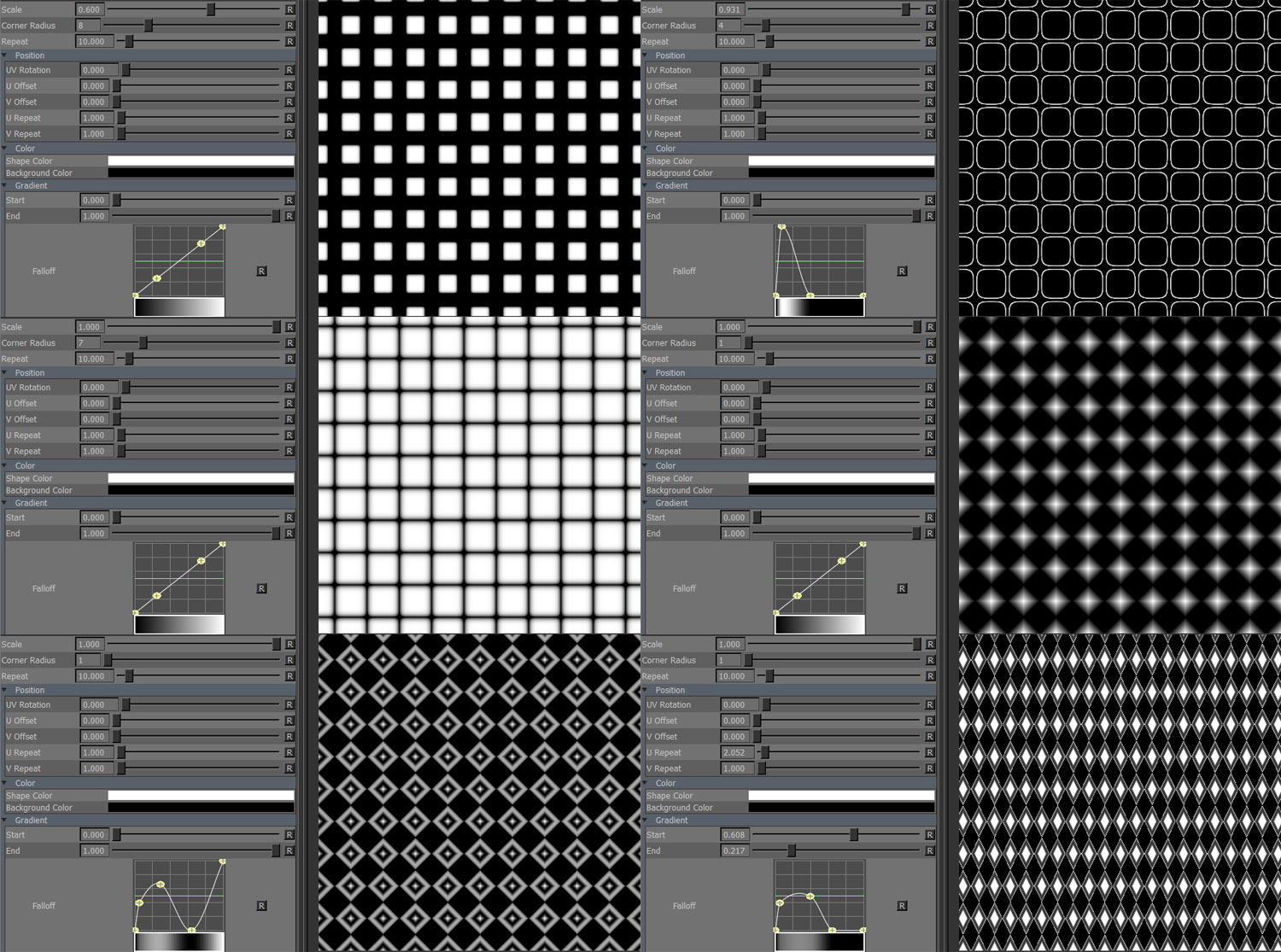

• Samples

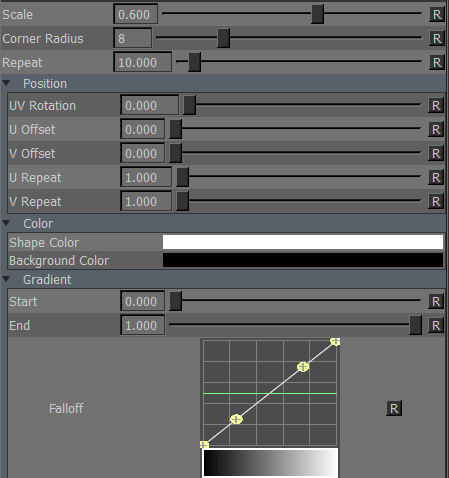

• Options
• Main
• Position
• Color
• Gradient

SuperEllipse 2D is in many ways similar to Dots 2D but with the addition of a custom corner radius setting, more pattern variation can be achieved.

• Scale

Scale of each shape. Decreasing shape size increases gap size between shapes.

Increasing Scale of SuperEllipse

• Corner Radius

Sets the radius of the corner of each shape, changing the shape from a rhombus to a circle to a rectangle etc.

Increasing Corner Radius of SuperEllipse

• Repeat

The number of shapes to draw horizontally and vertically.

• UV Rotation

Rotating in degrees. Pivot is the center of each UV Tile / UDIM.

• U Offset

Translates shapes horizontally in UV Space.

• V Offset

Translates shapes vertically in UV Space.

• U Repeat

Multiplier against 'Repeat' for the number of shapes drawn horizontally in UV Space.

• V Repeat

Multiplier against 'Repeat' for the number of shapes drawn vertically in UV Space.

• Shape Color

Color of each shape.

• Background Color

Color of area around shape.

• Start

The Value range up to which Background Color is drawn.

• End

The Value representing the full Shape Color.

• Falloff

Remap Curve against the final result.
