Remap Float


  • Where to find it:


    • Add Adjustment Layer / Extension Pack / Histogram /


    • NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Histogram /






The alRemapFloat Node is a powerful Value Remapping Node, giving same results as alRemapFloat Node for Arnold (part of alShaders by Anders Langlands).

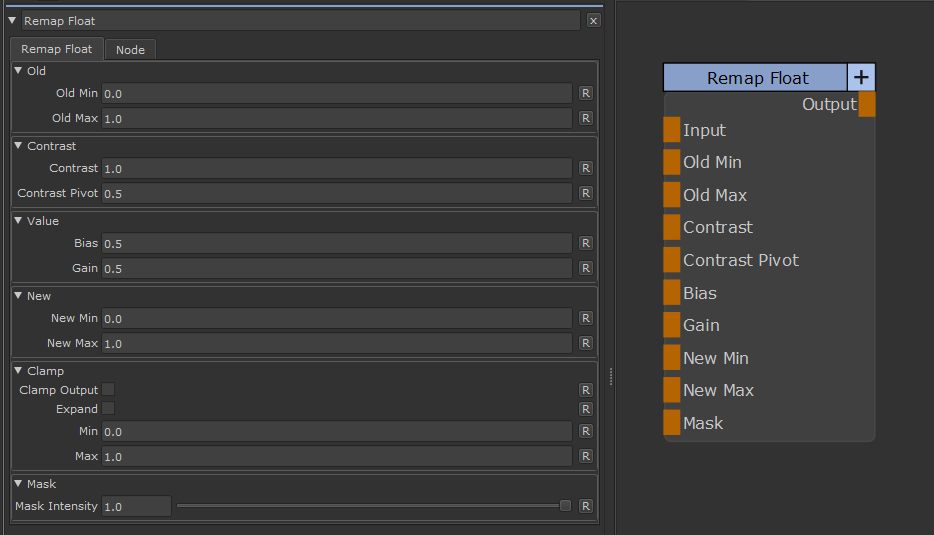

Node Overview


Node Ports


  • Input

Supplies the map you want to adjust


  • OldMin

The value that is defined as Minimum Value on the Input. For example on a gradient black to white, when increasing the OldMin

any incoming Value below OldMin will become black. If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • OldMax

The value that is defined as Maximum Value on the Input Color. For example on a gradient black to white, when decreasing OldMax

any incoming Value above OldMax will become white.If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • Contrast

A value to adjust the Contrast.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • Contrast Pivot

The Pivot Point for Contrasting. Larger values than the pivot will get 'crunched' towards white, lower values towards black

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • Bias

Bias the Input higher or lower. Values less than 0.5 push the average lower, values higher than 0.5 push it higher.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • Gain

Adds gain to the Input, in effect a different form of contrast. Values less than 0.5 increase the gain, values greater than 0.5 decrease it.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • New Min

The value that is defined as Minimum Value on the resulting Output. For example on a gradient black to white, when increasing NewMin

the previously black areas will be the value set in NewMin.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • New Max

The value that is defined as Maximum Value on the resulting Output. For example on a gradient black to white, when decreasing NewMax

the previously white areas will be the value set in NewMax.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated


  • Mask

Optional Mask to limit the effect


Node Properties


MAIN TAB


  • OldMin

The value that is defined as Minimum Value on the Input. For example on a gradient black to white, when increasing the OldMin

any incoming Value below OldMin will become black.


  • OldMax

The value that is defined as Maximum Value on the Input Color. For example on a gradient black to white, when decreasing OldMax

any incoming Value above OldMax will become white



  • Contrast

A value to adjust the Contrast.


  • Contrast Pivot

The Pivot Point for Contrasting. Larger values than the pivot will get 'crunched' towards white, lower values towards black



  • Bias

Bias the Input higher or lower. Values less than 0.5 push the average lower, values higher than 0.5 push it higher.


  • Gain

Adds gain to the Input, in effect a different form of contrast. Values less than 0.5 increase the gain, values greater than 0.5 decrease it.



  • New Min

The value that is defined as Minimum Value on the resulting Output. For example on a gradient black to white, when increasing NewMin

the previously black areas will be the value set in NewMin.



  • New Max

The value that is defined as Maximum Value on the resulting Output. For example on a gradient black to white, when decreasing NewMax

the previously white areas will be the value set in NewMax.



  • Clamp Output

When checked, the Output of the Node will be clamped to Min and Max


  • Expand

When enabled, it will expand the clamped range back to 0-1 after clamping.


  • Min

The Minimum Clamp Value


  • Max

The Maximum Clamp Value



  • Mask Intensity

Control the intensity of the effect.

If a Mask it attached to the Mask port of the node this will control the intensity of the supplied mask
