Ingest selected Images into Layer/Node


  • Where to find it:

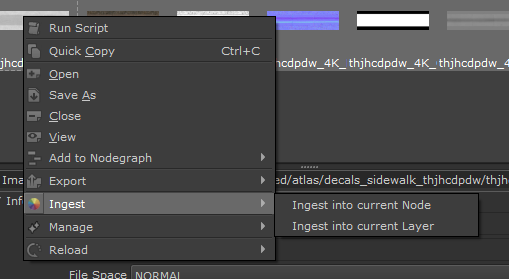

    • Image Manager Palette / Right Mouse Click on Image / Ingest /
    • Image Manager / Per Image Info Panel / Ingest /


  • Shortcut: (unassigned, use "Edit / Shortcuts" to assign)







The Ingest Tool allows you to directly assign multiple selected images to a selected Layer or Node, if the Layer/Node accepts Image Attributes.

This allows for quick assignment of images and swapping of materials.

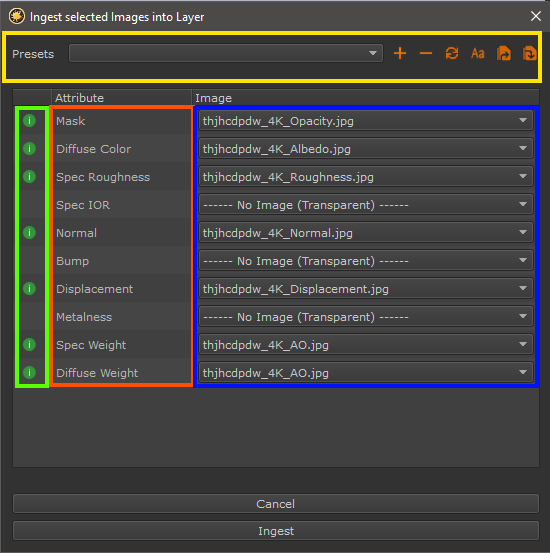

An Example ingesting selected Images into a selected Material Template




  • Attributes

Lists all Image Attributes on the selected Layer or Node


  • Images

Lists all selected Images from the Image Manager that can be assigned to an Attribute.


There are two standard settings


    • No Image (Transparent)

Does not set an Image onto the Attribute. If there already is an Image assigned, the assignment will be removed


    • Use Existing Image (No Change)

This option only is available if the Image Attribute already has an existing Image assigned. If this option is chosen

the Image Attribute will be left unchanged



You can change all dropdowns at once to No Image or use Existing Image via a right mouse click context menu


  • Information

A information button usually appears if the Image Attribute already has an assigned image




  • Presets

The Preset system allows you to save Naming Templates.


By default a 'Favourites' Preset is added (and automatically applied on Dialog open).


The Favourites Preset is dynamically generated based on your preferred assignments and continually changes and adapts based on your usage.



  • Using the Dialog you can save Presets of Channels Names and Channel Configurations, to quickly recall them between projects.
  • Presets can be exported and imported using configuration files.



Preset Dropdown


Choose from a saved preset.



Create new Preset



Adds a new preset to the preset list.



Delete Preset



Deletes the currently active preset.



Update Preset



Updates the currently selected Preset with the settings found in the main section of the dialog.



Rename Preset



Renames the currently selected preset



Export Presets



Exports all presets in your dropdown as a configuration file.



Import Presets



Import Presets from a configuration file. If presets with same names already exists, a dialog will prompt you for conflict

resolving


Example of a conflict resolve dialog for importing presets
