Align Nodes


  • Where to find them:


    • NodeGraph / Right Mouse Click / Alignment /


    • Main Window / Extension Pack / Nodegraph /  Alignment



  • Shortcut (Nodegraph Only): CTRL+ALT + Arrow Left/Right/Up/Down





Node Alignment Options are only available in Mari 4.7 or higher






Using the Node Alignment Options you can align Nodes or Backdrops with each other (Left, Right, Top, Bottom).

Alignment can be done using the Right Mouse Click Menu or the Hotkeys CTRL + ALT + Arrow Left/Right/Up/Down.



Aligning multiple Nodes


The basic functionality is easy - detect the highest or lowest x or y coordinate of any node in your selection and move all nodes to that

particular x or y value:

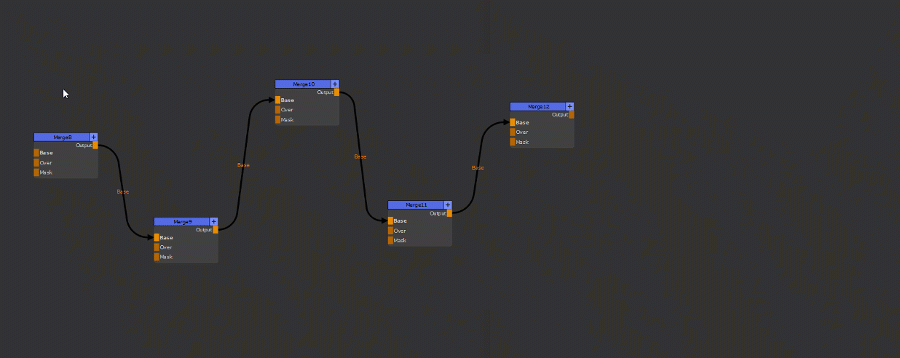

Example of using Align Top or Align Bottom to align a selection of nodes to the highest or lowest position


Aligning Backdrops


If your selection includes a Backdrop, the tools will automatically work in 'Backdrop Mode', even if normal nodes are selected.


Backdrops will be aligned with each other, Nodes move with Backdrops and aligning works based on Height & Width of Backdrops as well.

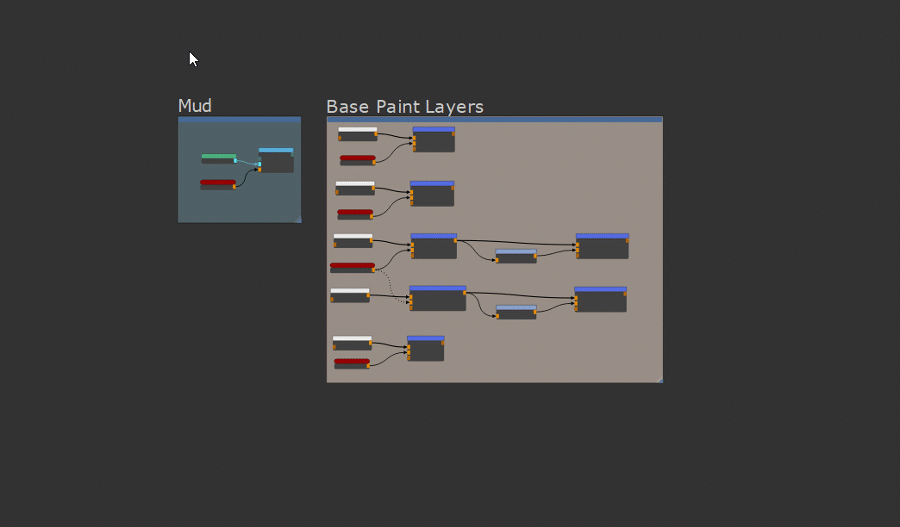

Example of aligning Backdrops


Single Node Alignment

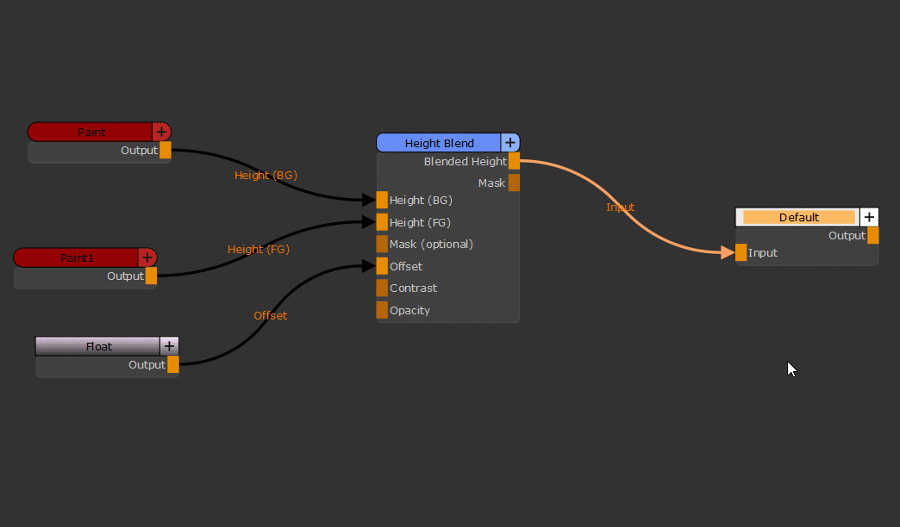

If only a single node is selected, while executing alignment tools, the Node will step through the different positions of the neighboring nodes.

Depending on if ports are visible on a neighboring node, the node will align to the port it is connected to first before aligning with the top of the

connected node.


Repeated executing of the alignment will step through all available positions.
