Axis Mask by Jens Kafitz








Axis Mask lets you easily mask an object based on directions.


Node Overview



Node Ports


When mapped the red channel of the attached connection is used to drive the Rotate X Attribute,

the green channel the Rotate Y Attribute and the blue channel the Rotate Z Attribute


By default the Edge Blending Jitter uses a node internal noise to perform its jittering/randomization of edges.

By attaching a noise of your choosing to the Jitter Noise Connection in the Nodegraph you can overwrite this

internal noise.

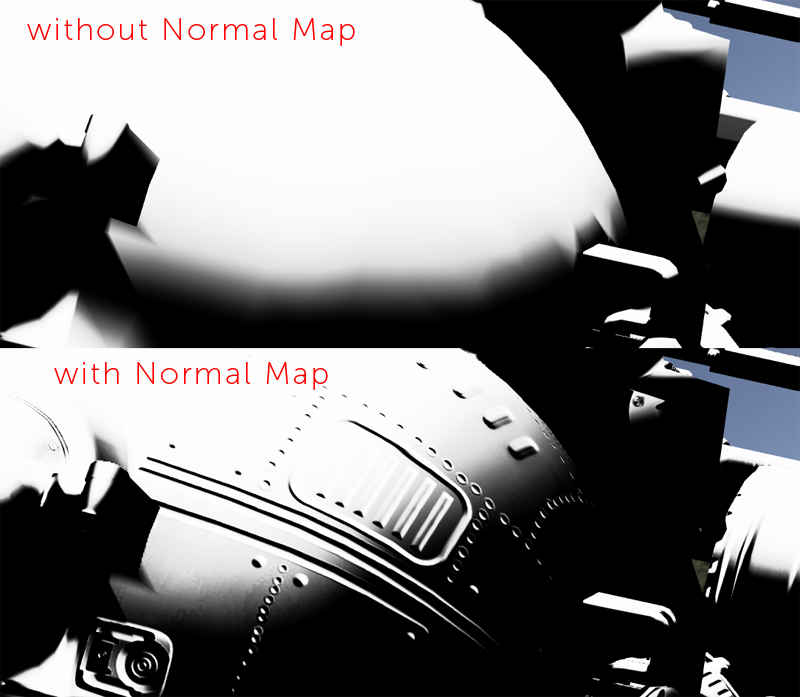

The 'Tangent Space Normal' Handle allows you to have the Axis Mask evaluated against the effects of a

normal map as well



Node Properties


Axis Selection


Masks the object from the positive and/or negative world X Axis


Masks the object from the positive and/or negative world Y Axis


Masks the object from the positive and/or negative world Z Axis



Edge Blending


The  Falloff Curve determines the general Falloff of each mask axis to its sides.






Fully opaque mask by default


With default settings and all axis activated, your object will get a fully white mask

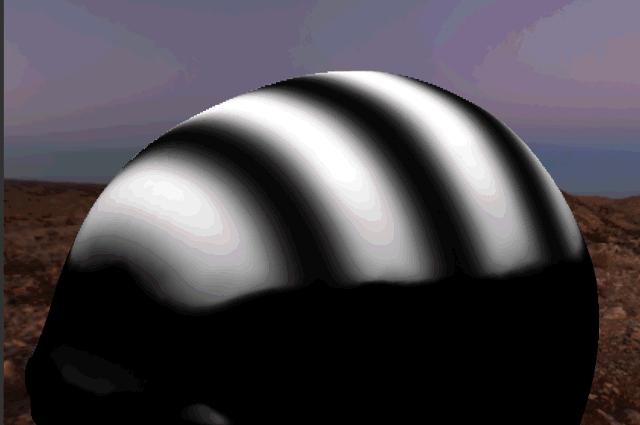

Jitter will make the edges of the axis mask less uniform/straight.

The Jitter Intensity determines the amplitude of the the Jitter.


You can overwrite the Noise used for jittering the edges by mapping the Jitter Noise Port in the Nodegraph



Determines the Frequency of the internal Noise used for jittering.





Jitter Scale is ignored if something is attached via the Nodegraph to the Jitter Noise Port





Color


The two colors that make up the mask.

Both colors support transparency so for example if you want to make the black part transparent, set the alpha value

of Color B to 0.


Swaps Color A+B




Global Axis Rotation


Allows you to rotate the global X, Y and Z axis separately to best suite your models need.



Tangent Space Normal Map


Flips the Red/Green Channel of any normal map attached to the 'Tangent Space Normal' Handle in the Nodegraph
