Simple Input Switch by Jens Kafitz


  • Where to find it: (This Node is available in the Nodegraph only)


    • NodeGraph / Right Mouse Click / Add Nodes / Layer / Extension Pack /





The Input Switch will switch between 2 Inputs via a checkbox.

This is useful to disable parts of a network (damage on/off etc.)

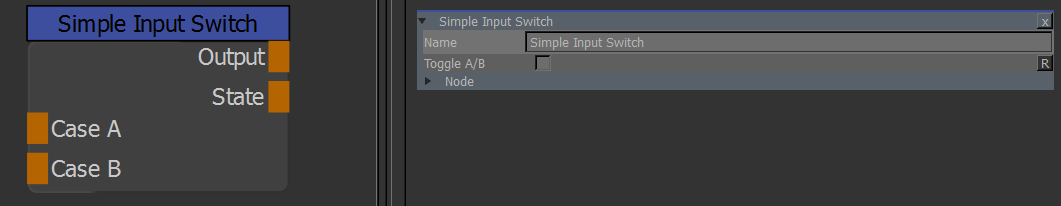

Node Overview


Node Ports


  • Case A / B

The two different Inputs the Node will switch between


  • Output State

Outputs the Active / Inactive State of the checkbox in the Node as White / Black.


Node Properties


MAIN TAB


  • Toggle A/B

When off Nodes attached to Case A Handle will be shown, when on Nodes attached to Case B Handle
