Text Generator by Jens Kafitz


  • Where to find it:


    • Main Window / Extension Pack / Text Tool
    • Mari 4.x: Tools Toolbar /

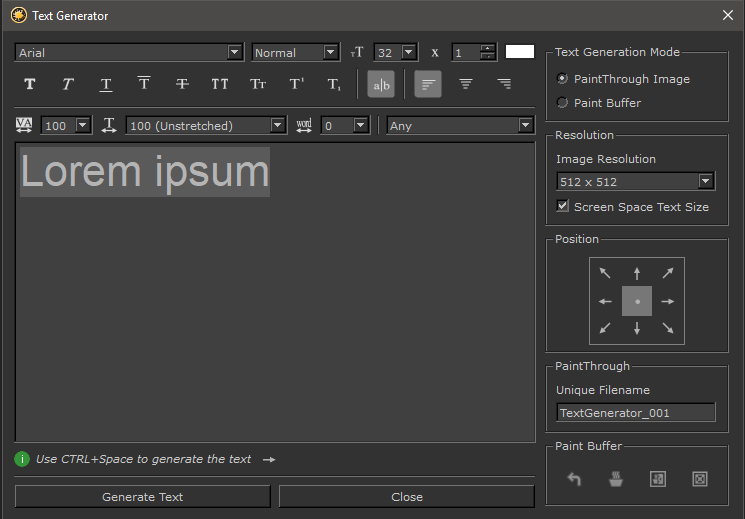

Extension Pack adds a Text Generation Tool to Mari:




Video




Text Generation Options


Text Generation Mode



Before you start to generate Text, you need to decide if you want the text created directly in the Paint Buffer or as a Paint Through Image.

Your prefered way of generating text is saved for future uses.


Paint Through Image


    • If you choose 'PaintThrough Image' Mode, Mari switches automatically to the 'Paint Through' Tool  allowing you to modify the Image

in the Viewport


    • Whenever Text is generated an Image with the 'Unique Filename' is loaded into the Image Manager

and set as Paint Through Image


    • Generated Images are saved in your projects default Image directory. You can check and change the path in the Images Section

 of the Set Project Paths Tool, also included in Extension Pack.


Paint Buffer


    • If you choose 'Paint Buffer' Mode, Mari switches automatically to the 'Transform Paint' Tool, allowing you to modify the Image

Buffer in the VIewport



Resolution



The Resolution field determines the Image Resolution of the generated Text.



       Image Resolution vs Paint Buffer Resolution


    • In PaintThrough Image Mode, this sets the resolution of the generated Image


    • In Paint Buffer Mode, this sets the resolution of the Paint Buffer.

Don't forget to change it back when you are done, to the resolution you want to continue working in !



Screen Space Text Size


The Screen Space Text Size dynamically scales your font size up and down, to maintain the same size of the generated text

on screen between resolutions.

This allows you to work for example in 512x512 for fast Text Generation Mode, and then scale up to 2048x2048 in the end

while the result (font size, spacing etc.) stays the same on screen.


Screen Space Text Size is remembered between sessions







Work low, generate High


Generating a High resolution Image can take a second.

For fast iteration, work at low resolution, keep 'Screen Space Text Size' ticked on

and generate the final resolution when you are done

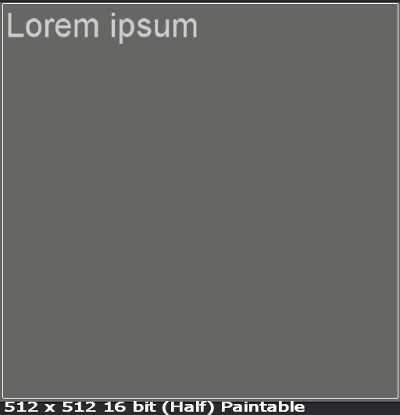

Position


The Position specifies the position of your generated text in the image or paint buffer




Generation Mode Tool Options


Depending on your chosen method of Text Generation, additional options are available


Paint Through Image



When in PaintThrough Image Text Generation Mode, the Unique Filename allows you to specify the Filename used to load

the generated Image into the Paint Buffer.


By default, the Text Generator will keep overwriting the previous generated Image.

If you wish to keep a generated Text for future use in the Image Manager, change the Filename and the Tool will not overwrite

the old Image.


The Filename is remembered between sessions.



Paint Buffer



For convenience several Paint Buffer Actions are directly available in the UI


    •   Reset Paint Buffer Transform will reset your Buffer transformation to the values they were at, at Text Tool launch





Text Tool Reset Paint Buffer vs Default Mari Reset Paint Buffer


Other than the default Mari Reset Paint Buffer available in the 'Transform Paint' Toolbar

the Text Tool's Reset Buffer resets Transformations to the State they were in when the

Text Tool dialog was launched




    •  Bake Paint Buffer bakes down the paint in the buffer


    •  Bake and Clear Paint Buffer bakes down the paint in the buffer and clear it after


    •  Clear Paint Buffer will delete the Paint currently in the Buffer




Text Style Options


General Information



The Text Style options give you the usual controls over your text with some Tool specific modifications


    • An additional Font Size Multiplier exists next to the Font Size. This is the multiplier used to scale up your font size

when generating text in the viewport


    • When no selection exists in the text field but the cursor is within a word, changing a value will affect the entire word.


    • Similar to Photoshop when there is a label icon next to a dropdown you can use a mouse drag to modify the corresponding

value


    • Similar to the rest of Mari, you can place your cursor inside a number field and use CTRL+ Arrow Up / Down to increment

the number behind the cursor (in 1, 10, 100 Steps)


    • You can use the Hotkey CTRL+Space to quickly generate Text in the viewport.


Text Style




Font


Modify the font. All your installed fonts are shown



Font Style


Modify the font style such as Bold, Italic etc.


Font Size


Modify the font size.


    • Similar to Photoshop you can drag the label icon next to the dropdown to modify the corresponding value


    • Similar to the rest of Mari, you can place your cursor inside the number field and use CTRL+ Arrow Up / Down to

 increment the number behind the cursor (in 1, 10, 100 Steps)


Font Size Multiplier


Multiplies the Font Size for all your document when generating the text. This allows you to work with large font sizes while still

seeing a reasonably sized preview in the text field.


    • Similar to Photoshop you can drag the label icon next to the dropdown to modify the corresponding value


    • Similar to the rest of Mari, you can place your cursor inside the number field and use CTRL+ Arrow Up / Down to

increment the number behind the cursor (in 1, 10, 100 Steps)


Color


Modify the Text Color





Bold / Italic


Sets font to Bold or Italic. This also affects the font style dropdown


Underlined, Overlined, Strike


Adds a line under, over or through your text


All Caps


Capitalizes your Font


Small Caps


Capitalizes your Font, but applies it in a non-capitalized size


Superscript / Subscript


Adds Text above or below the font baseline





Kerning on/off


Toggles Kerning for the current font family

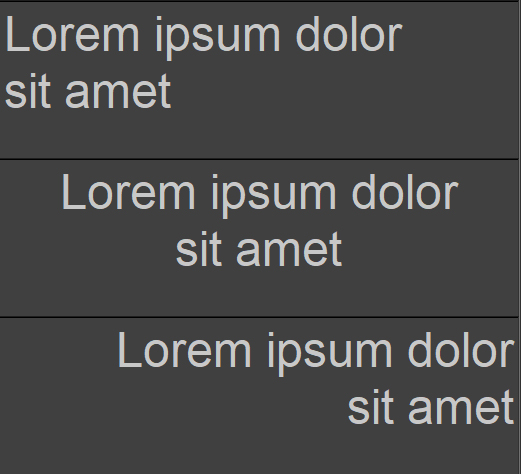

Alignment


Sets your Document Alignment to left, right or center







Letter Spacing


Modify the distance between individual Letters.


    • Similar to Photoshop you can drag the label icon next to the dropdown to modify the corresponding value


    • Similar to the rest of Mari, you can place your cursor inside the number field and use CTRL+ Arrow Up / Down to

increment the number behind the cursor (in 1, 10, 100 Steps)



Font Stretching


Scale the font in X Axis


    • Similar to Photoshop you can drag the label icon next to the dropdown to modify the corresponding value


    • Similar to the rest of Mari, you can place your cursor inside the number field and use CTRL+ Arrow Up / Down to

increment the number behind the cursor (in 1, 10, 100 Steps)




Font Stretching only works with Font Sizes maximum 47


Font Stretching currently does not work with font sizes over 47.

This includes the font size multipliers and Screen Space Text Size.

E.g a Font Size of 47 with a multiplier of 2 will not work either



Word Spacing


Adjust the distance between words for your document


    • Similar to Photoshop you can drag the label icon next to the dropdown to modify the corresponding value


    • Similar to the rest of Mari, you can place your cursor inside the number field and use CTRL+ Arrow Up / Down to

increment the number behind the cursor (in 1, 10, 100 Steps)



Writing System


Determines which fonts will be available in the Font Dropdown



Useful Shortcuts



  • CTRL + Space will generate your text


  • CTRL + Arrow Up/Down in a Number Field or Dropdown will increment the value depending on cursor position (in 1, 10 or 100 Steps)


  • Standard Hotkeys like CTRL  + B, CTRL + I and CTRL + U for Bold, Italic and Underlined



Known Limitations



  • When in Paint Buffer Mode ,Text is currently generated in linear colorspace and then gets an sRGB LUT applied to match

the original font color selection in the Text Tool.

This means that when you are using a viewport LUT other than sRGB (sRGB Aces etc.) the resulting color in the viewport

 will be different from your color selection in the Text Tool.


  • Font Stretching is only available in Mari 4.x and above


  • Font Stretching does currently not work with Font Sizes over 47.

This includes multipliers, so a Font Size of 47 with a multiplier of 2 will not work either


  • In some cases Mari is unable to add the Text Tool to the Main Mari Tools Toolbar (for example if a screen recording software is running).

In these cases the Tool will be added to the Extension Pack Toolbar.
