Input Switch X11 by Jens Kafitz


  • Where to find it: (This Node is available in the Nodegraph only)


    • NodeGraph / Right Mouse Click / Add Nodes / Layer / Extension Pack /



This Node is also available as a version with 4 Inputs Input Switch X4





The Input Switch will switch between 11 Inputs based on a step value provided by the 'Case Selection' Connection

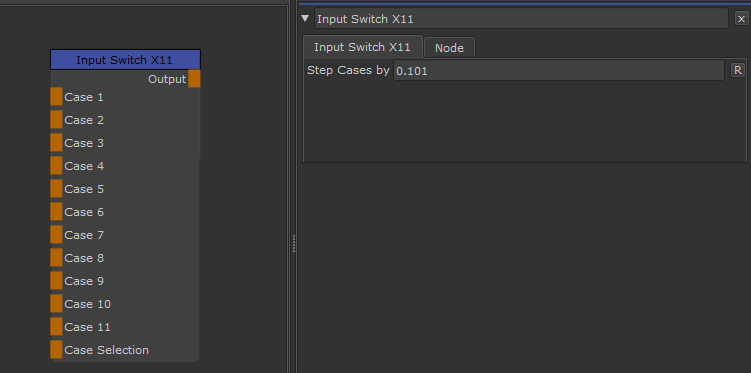

Node Overview



Node Ports


  • Case 1 - 11

The different Inputs the Node will cycle through


  • Case Selection

Provides the Value that is used to determine which Case (1,2,3,4,5,6 ...11) to output from the Node.

If nothing is attached to this connection Case 1 is used.


Node Properties


MAIN TAB


  • Step Cases by

The Value Range between each Case.

By default a value of 0.101 is used meaning that on a Value range of 0-1 fed in via the Case Selection Connection

the node will output


    • Case 1 for 0-0.1
    • Case 2 for 0.1-0.2
    • Case 3 for 0.2-0.3
    • Case 4 for 0.3 - 0.4
    • Case 5 for 0.4 - 0.5
    • Case 6 for 0.5 - 0.6
    • Case 7 for 0.6 - 0.7
    • Case 8 for 0.7 - 0.8
    • Case 9 for 0.8 - 0.9
    • Case 10 for 0.9 - 1.0
