Image by Jens Kafitz |
- Where to find it:
- Add Procedural Layer / Procedural / Extension Pack / Generators
- NodeGraph / Right Mouse Click / Add Nodes / Procedurals / Extension Pack / Generators

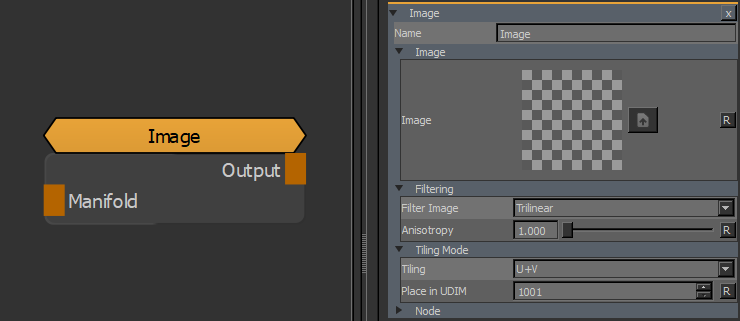

The 'Image' Node or Layer can be used to load an Image in the Layerstack or Nodegraph.
It is a stripped down version of a Mari 'Tiled' Node without the UV Transformation options
that the 'Tiled' Node offers and is thereby a faster node in itself.
It can be used together with the 'Manifold UV' Node in the Nodegraph to turn it into a full 'Tiled' Node again.
In addition the Node overs 'Stencil' functionality that allows you to turn of default image wrapping around the edges
- Manifold
The 'Manifold' connection can be used to feed in a coordinate system to evaluate the Image on.
Possible Nodes to attach to are 'UV' & 'Manifold UV' for example to adjust the tiling of the image
MAIN TAB
- Image
Drag & Drop an image from the image manager or outside of Mari or use the Browse Button
to browse for one.
- Filter Image
The Filtering Method used for the loaded Image
- Anisotropy
If the Filter Method is set to 'Anisotropic' this will determine the amount of filtering when the image is
viewed at grazing angles

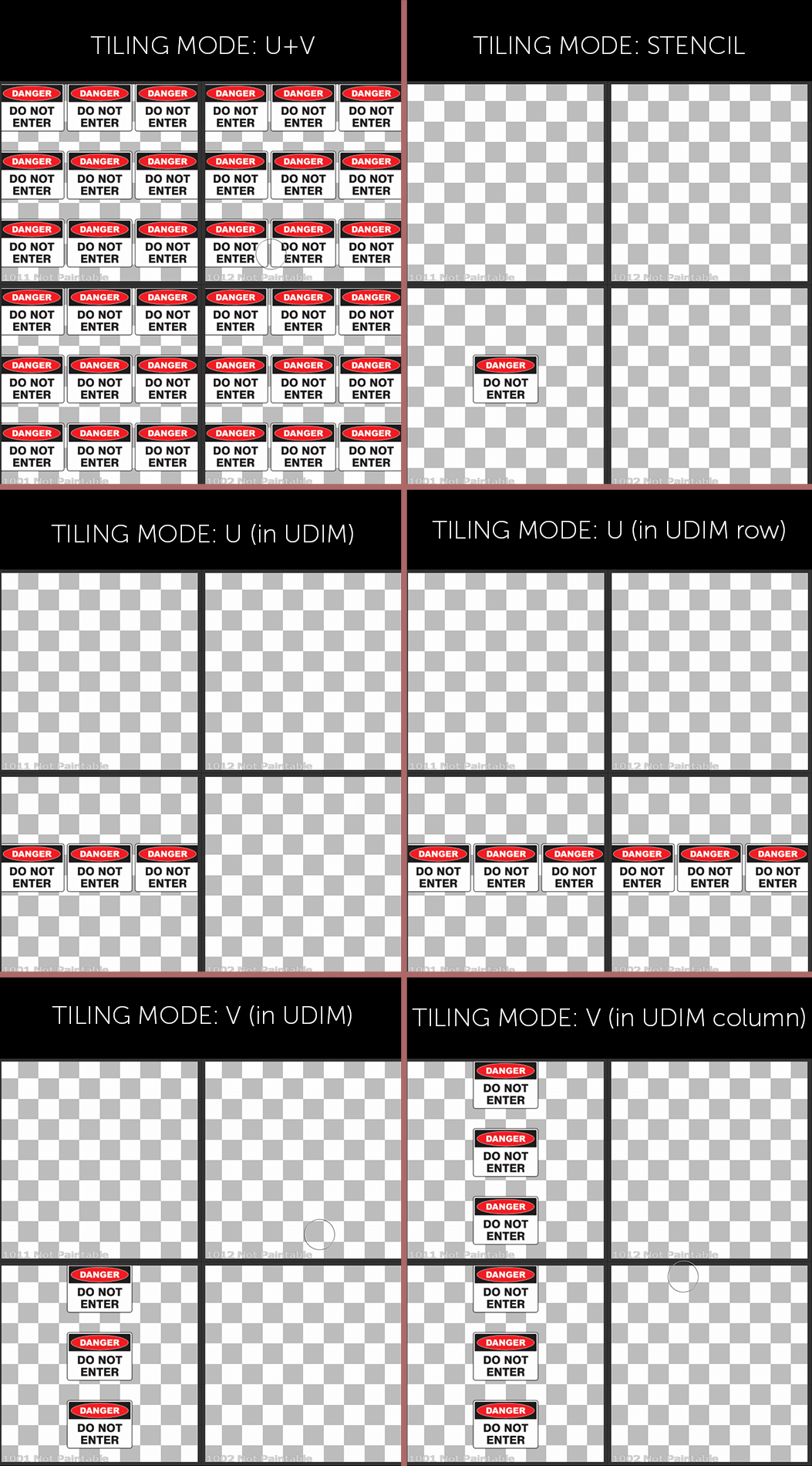

- Tiling
Determines the tiling mode:
- Place in UDIM
The UDIM to generate the single image instance in.
