Pack / Unpack Data by Antonio Neto

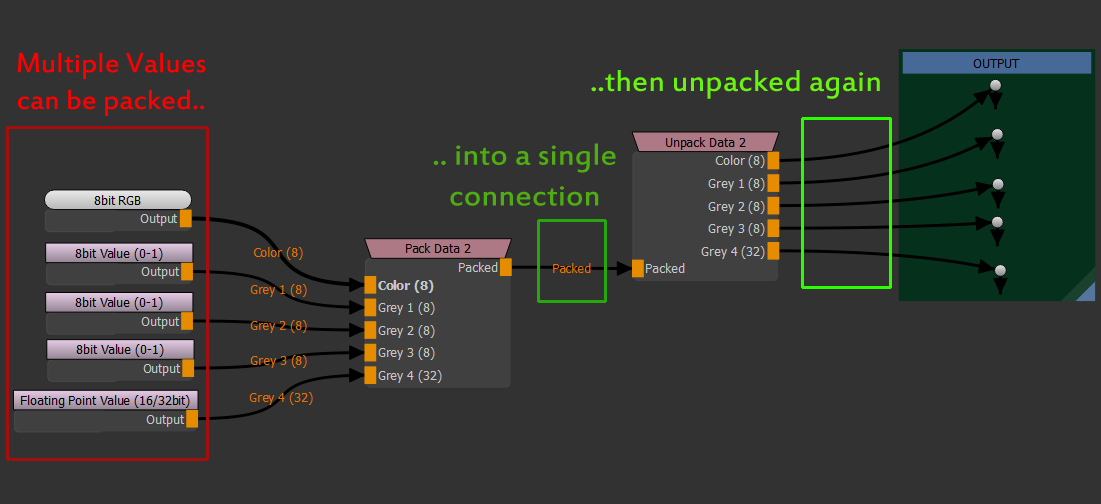

The Pack Data Node allows you to compress multiple values into a single output connection, then unpack them again

using the Unpack Data Node.



The primary usage for this is working around a Mari Limitation when using Graph Layers / Graph Groups, that  only support

a single Output.


Using the Pack Data System you can output multiple values from a single Graph Group.

Video


Supported Value Types


The Pack Data System allows for multiple values to be compressed and uncompressed


8 Bit Color Information (RGB) without Alpha Channel.

Values over 1 are not supported


8 Bit Grayscale Information with Values from 0 to 1.

Values over 1 are not supported


16 Bit or 32 Bit Grayscale Information with Values from 0 to 65500.
