Replace Color by Jens Kafitz









Replace Color allows you to replace a selected color or color range with another.


Video

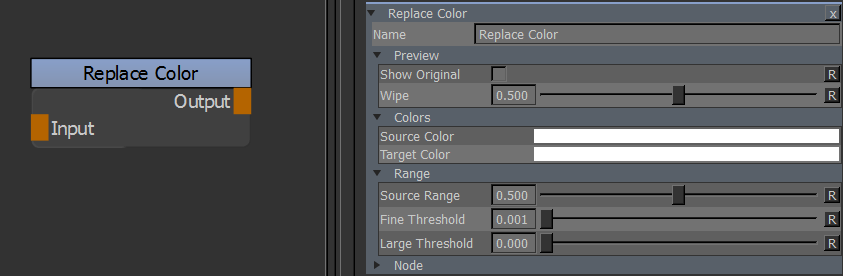

Node Overview


Node Properties

Preview


Allows you to show the result without the Adjustment applied.

This is useful for color picking. How the Original is shown depends on your settings for

'Wipe'


A viewport wipe between Source Color and Target Color. The wipe position is in percentage of your

paint buffers width. Moving the Paint Buffer will change the position of the wipe midpoint


Colors


The Source Color to replace


The new Color to replace the Source Color with

Range


The Source Color Range affects the 'opacity' of the mask that is being applied to mix between Source Color and Target Color.


It works by setting new White and Black Output Levels in the luminance.

In a Remapping node this would be equivalent to the 'New Minimum Value' and 'New Maximum Value'


The Fine Threshold affects the contrast levels of the mask that is being applied to mix between Source Color and Target Color.


It works by setting new White and Black Input Levels in the Luminance.

In a remapping node this would be the equivalent the the 'Old Minimum Value' and the 'Old Maximum Value'


Other than the Large Threshold which affects the entire luminance range (0-1) the Fine Threshold only works in the range

of 0.0- 0.01 giving you extremely fine control over color selections.



The Large Threshold affects the contrast levels of the mask that is being applied to mix between Source Color and Target Color.


It works by setting new White and Black Input Levels in the Luminance.

In a remapping node this would be the equivalent the the 'Old Minimum Value' and the 'Old Maximum Value'


The Large Threshold affects the entire luminance range (0-1) making it more suitable for broad value selections




FINE THRESHOLD + LARGE THRESHOLD = Final Threshold


The sliders for Fine and Large Threshold are added together to make up the final threshold value
